意大利 欧玛尔(OMAL.S.P.A.)自控阀门公司，是集设计与制造为一体的自主研发型阀门制造公司，在 执行器和自控阀门的设计和制造方面有着30年的经验。OMAL(欧玛尔)自控阀门公司系出名门，由意大利知名工业企业BONOMI集团传人BONOMI-OMAL先生于1981年创立，并于当年推出具有划时代意义的“单气缸双活塞-拨叉式变扭矩” 气动执行器，荣获多项专利，具备“小体积-大扭矩”的突出特点，使控制更为可靠方便。依托优异的品质和先进的技术，OMAL(欧玛尔)迅速成长为欧洲拨叉式气动执行器供应商，为客户提供更为专业的自控服务。1990年，OMAL(欧玛尔)相继推出自控球阀、自控蝶阀、自控 角座阀等多品种全型号自控阀门，1998年，OMAL(欧玛尔)VIP梭阀荣获欧洲工业设计金奖。凭借着对技术与品质的执着追求，OMAL执行器和自控阀门已处于欧洲领先地位，也由最初的专业执行器制造商，成长为欧洲著名的自控阀门公司。对品质的严格要求和对技术的不断创新，是OMAL产品领先世界的重要原因。OMAL自控阀门产品覆盖所有的工业领域，能满足各种严酷恶劣的条件及高标准用户的要求，其产品有：球阀、蝶阀、角座阀、梭阀以及执行器等。

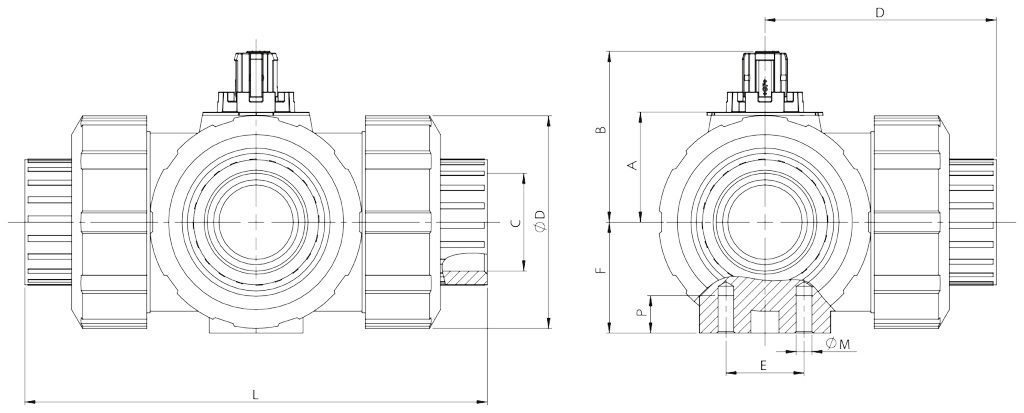

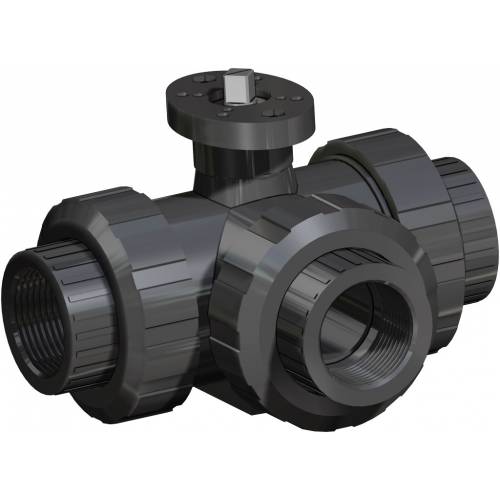

DIMENSIONS | ||||||||||||||
SIZE | A | B | C Threaded | C Glued | D Threaded | D Glued | E | F | L Threaded | L Glued | øM | P | øQ | |
| DN [mm] | [inch] | |||||||||||||
| DN 10 | 3/8" | 26,1 | 41 | 3/8" | 16 | 54 | 52 | 25 | 28 | 113 | 109 | 6 | 8 | 50 |
| DN 15 | 1/2" | 26,1 | 41 | 1/2" | 20 | 56 | 54 | 25 | 28 | 117 | 112 | 6 | 8 | 50 |
| DN 20 | 3/4" | 30 | 48,5 | 3/4" | 25 | 66 | 64 | 25 | 32 | 135 | 131 | 6 | 8 | 58 |
| DN 25 | 1" | 35,2 | 55 | 1" | 32 | 74 | 72 | 25 | 36 | 155 | 151 | 6 | 8 | 68 |
| DN 32 | 1" 1/4 | 44 | 66,9 | 1" 1/4 | 40 | 89 | 90 | 45 | 45 | 179 | 181 | 8 | 9 | 84 |
| DN 40 | 1" 1/2 | 50,2 | 73,1 | 1" 1/2 | 50 | 102,5 | 105 | 45 | 51 | 201 | 205 | 8 | 9 | 97 |
| DN 50 | 2" | 62 | 89,4 | 2" | 63 | 130,5 | 133,5 | 45 | 65 | 255 | 261 | 8 | 9 | 124 |

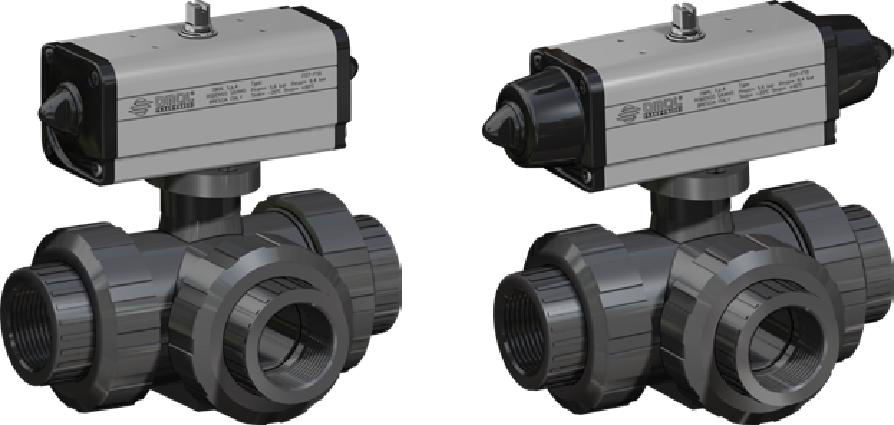

CON ATTUATORE PNEUMATICO DOPPIO EFFETTO | ||||||||||
WITH DOUBLE ACTING PNEUMATIC ACTUATOR | ||||||||||
MISURA SIZE | ARTICOLO valvola filettata | ARTICOLO valvola da incollare | ATTUATORE | KIT montaggio | L [mm] | H [mm] | Kg | |||
DN [mm] | [inch] | ITEM CODE threaded valve | ITEM CODE to be glued valve | ACTUATOR | Mounting KIT | |||||
10 | 3/8" | DG63*H003 | DG63*H083 | DAN0015412S | KCF045453 | 159,0 | 119,0 | 1,18 | ||
15 | 1/2" | DG63*H004 | DG63*H084 | DAN0015412S | KCF045453 | 159,0 | 119,0 | 1,19 | ||
20 | 3/4" | DG63*H005 | DG63*H085 | DAN0015412S | KCF045454 | 159,0 | 128,0 | 1,30 | ||
25 | 1" | DG63*H006 | DG63*H086 | DAN0015412S | KCF045454 | 159,0 | 133,0 | 1,49 | ||
32 | 1"1/4 | DG63*H007 | DG63*H087 | DAN0015412S | KCF045455 | 159,0 | 145,0 | 1,81 | ||
40 | 1"1/2 | DG63*H008 | DG63*H088 | DAN0030411S | KCF045678 | 174,0 | 158,0 | 2,21 | ||
50 | 2" | DG63*H009 | DG63*H089 | DAN0030411S | KCF045456 | 174,0 | 175,0 | 3,50 | ||
CON ATTUATORE PNEUMATICO SEMPLICE EFFETTO | ||||||||||||
WITH SPRING RETURN PNEUMATIC ACTUATOR | ||||||||||||
MISURA | SIZE | ARTICOLO valvola filettata | ARTICOLO valvola da incollare | ATTUATORE | KIT montaggio | L [mm] | H [mm] | Kg | ||||
DN [mm] | [inch] | ITEM CODE threaded valve | ITEM CODE to be glued valve | ACTUATOR | Mounting KIT | |||||||
10 | 3/8" | SG63*H003 | SG63*H083 | SRN0015402S | KCF045453 | 233,2 | 126,0 | 1,68 | ||||
15 | 1/2" | SG63*H004 | SG63*H084 | SRN0015402S | KCF045453 | 233,2 | 126,0 | 1,69 | ||||
20 | 3/4" | SG63*H005 | SG63*H085 | SRN0015402S | KCF045454 | 233,2 | 135,0 | 1,80 | ||||
25 | 1" | SG63*H006 | SG63*H086 | SRN0015402S | KCF045454 | 233,2 | 140,0 | 1,99 | ||||
32 | 1"1/4 | SG63*H007 | SG63*H087 | SRN0015402S | KCF045455 | 233,2 | 152,0 | 2,31 | ||||
40 | 1"1/2 | SG63*H008 | SG63*H088 | SRN0030402S | KCF055461 | 258,8 | 168,0 | 3,21 | ||||
50 | 2" | SG63*H009 | SG63*H089 | SRN0030402S | KCF055462 | 258,8 | 185,0 | 4,50 | ||||
* Articolo 635: valvola filettata Sfera a T - Articolo 636: valvola filettata Sfera a L - Articolo 637: valvola da incollare Sfera a T | - Articolo 638: valvola da incollare Sfera a L. | |||||||||||
* Item 635: threaded valve T port - Item 636: threaded valve L port - Item 637: to be glued valve T port - Item 638: to be glued valve L port. | ||||||||||||
