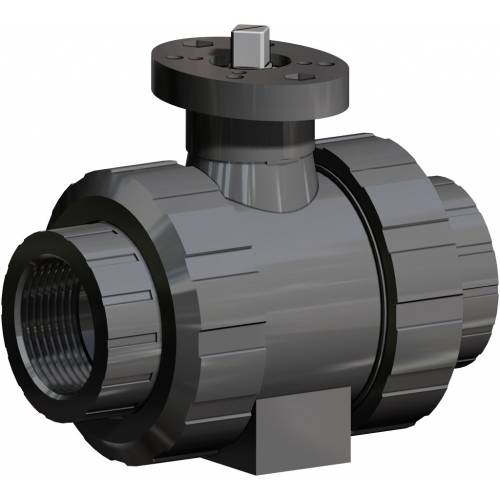

OMAL双向全孔PVC球阀

一般特征:
工作温度:0℃至80℃
工作压力:见图表
应用:与聚氯乙烯相容的化学和各种流体
连接:
内螺纹符合德国工业标准/国际标准化组织228/1；
胶合ISO 727 UNI EN 1452
PN 16至20癈，如果分类耐化学性，使用带胶合端的用过的流体，PN10带螺纹端。

应要求:
请联系我们的销售部门。

产品资料

1-5-5-1-ITEM615-616.pdf

意大利欧玛尔(OMAL.S.P.A.)自控阀门公司，是集设计与制造为一体的自主研发型阀门制造公司，在执行器和自控阀门的设计和制造方面有着30年的经验。OMAL(欧玛尔)自控阀门公司系出名门，由意大利知名工业企业BONOMI集团传人BONOMI-OMAL先生于1981年创立，并于当年推出具有划时代意义的“单气缸双活塞-拨叉式变扭矩” 气动执行器，荣获多项专利，具备“小体积-大扭矩”的突出特点，使控制更为可靠方便。依托优异的品质和先进的技术，OMAL(欧玛尔)迅速成长为欧洲拨叉式气动执行器供应商，为客户提供更为专业的自控服务。1990年，OMAL(欧玛尔)相继推出自控球阀、自控蝶阀、自控角座阀等多品种全型号自控阀门，1998年，OMAL(欧玛尔)VIP梭阀荣获欧洲工业设计金奖。凭借着对技术与品质的执着追求，OMAL执行器和自控阀门已处于欧洲领先地位，也由最初的专业执行器制造商，成长为欧洲著名的自控阀门公司。对品质的严格要求和对技术的不断创新，是OMAL产品领先世界的重要原因。OMAL自控阀门产品覆盖所有的工业领域，能满足各种严酷恶劣的条件及高标准用户的要求，其产品有：球阀、蝶阀、角座阀、梭阀以及执行器等。

OMAL双向全孔PVC球阀

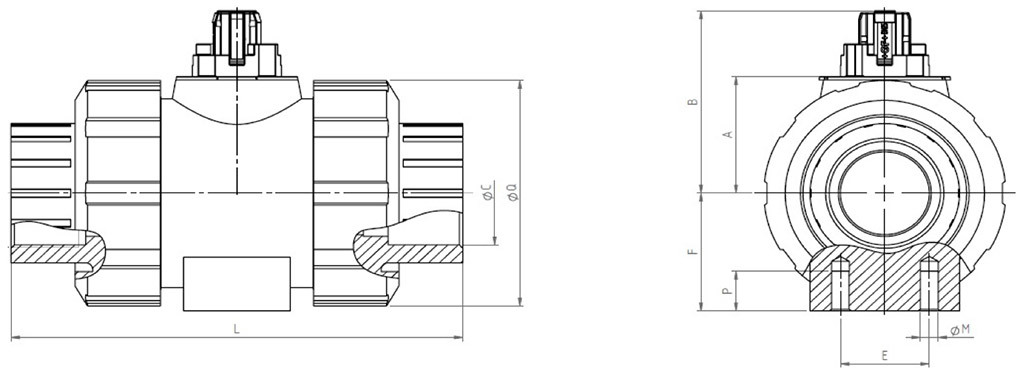

DIMENSIONS
SIZE		L Threaded	L Glued	ØQ	ØC Threaded	ØC Glued	A	B	E	F	ØM	P
DN [mm]	[inch]	L Threaded	L Glued	ØQ	ØC Threaded	ØC Glued	A	B	E	F	ØM	P
DN 10	3/8"	92	95	50	3/8"	16	26,1	41	25	27	6	12
DN 15	1/2"	95	100	50	1/2"	20	26,1	41	25	27	6	12
DN 20	3/4"	110	114	58	3/4"	25	30	48,5	25	30	6	12
DN 25	1"	123	127	68	1"	32	35,2	55	25	36	6	12
DN 32	1" 1/4	146	146	84	1"1/4	40	44	66,9	45	44	8	15
DN 40	1" 1/2	157	152	97	1"1/2	50	50,2	73,1	45	51	8	15
DN 50	2"	183	177	124	2"	63	62	89,4	45	64	8	15
DN 65	2" 1/2	233	233	166	2"1/2	75	84,1	126	70	85	8	15
DN 80	3"	254	254	200	3"	90	95,9	138	70	105	8	15
DN 100	4"	301	301	238	4"	110	109,9	152	120	123	12	22

OMAL双向全孔PVC球阀

		CON ATTUATORE PNEUMATICO DOPPIO EFFETTO
			*WITH DOUBLE ACTING PNEUMATIC ACTUATOR*
MISURA	*SIZE*	ARTICOLO valvola filettata		ARTICOLO valvola da incollare	ATTUATORE	KIT montaggio	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*	*Mounting KIT*	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*	*Mounting KIT*

10	3/8"	DG615H003		DG616H083	DAN0015412S	KCF045453	159,0	119,0	1,0
15	1/2"	DG615H004		DG616H084	DAN0015412S	KCF045453	159,0	119,0	1,0
20	3/4"	DG615H005		DG616H085	DAN0015412S	KCF045454	159,0	128,0	1,2
25	1"	DG615H006		DG616H086	DAN0015412S	KCF045454	159,0	133,0	1,3
32	1"1/4	DG615H007		DG616H087	DAN0015412S	KCF045455	159,0	145,0	1,6
40	1"1/2	DG615H008		DG616H088	DAN0030411S	KCF045678	174,2	158,0	2,0
50	2"	DG615H009		DG616H089	DAN0030411S	KCF045456	174,2	175,0	2,7
65	2"1/2	DG615H010		DG616H090	DAN0030411S	KCF045457	174,2	250,0	4,7
80	3"	DG615H011		DG616H091	DAN0045412S	KCF045457	188,5	267,0	6,8
100	4"	DG615H012		DG616H092	DAN0060412S	KCF055459	198,0	265,0	10,5

		CON ATTUATORE PNEUMATICO SEMPLICE EFFETTO
			*WITH SPRING RETURN PNEUMATIC ACTUATOR*
MISURA	*SIZE*	ARTICOLO valvola filettata		ARTICOLO valvola da incollare	ATTUATORE		KIT montaggio	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*		*Mounting KIT*	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*		*Mounting KIT*

10	3/8"	SG615H003		SG616H083	SRN0015402S		KCF045453	233,2	126,0	1,5
15	1/2"	SG615H004		SG616H084	SRN0015402S		KCF045453	233,2	126,0	1,5
20	3/4"	SG615H005		SG616H085	SRN0015402S		KCF045454	233,2	135,0	1,7
25	1"	SG615H006		SG616H086	SRN0015402S		KCF045454	233,2	140,0	1,8
32	1"1/4	SG615H007		SG616H087	SRN0015402S		KCF045455	233,2	152,0	2,0
40	1"1/2	SG615H008		SG616H088	SRN0030402S		KCF055461	258,8	168,0	3,0
50	2"	SG615H009		SG616H089	SRN0030402S		KCF055462	258,8	185,0	3,7
65	2"1/2	SG615H010		SG616H090	SRN0030402S		KCF055463	258,8	260,0	5,7
80	3"	SG615H011		SG616H091	SRN0053401S		KCF075498	304,2	287,0	8,6
100	4"	SG615H012		SG616H092	SRN0060401S		KCF075499	338,5	282,0	12,3
Dimensionamento degli attuatori pneumatici fatto considerando una pressione minima di alimentazione pari a 5,6 barg.						Sizing of pneumatic actuators by minimum pressure rate 5,6 barg.
