意大利 欧玛尔(OMAL.S.P.A.)自控阀门公司，是集设计与制造为一体的自主研发型阀门制造公司，在 执行器和自控阀门的设计和制造方面有着30年的经验。OMAL(欧玛尔)自控阀门公司系出名门，由意大利知名工业企业BONOMI集团传人BONOMI-OMAL先生于1981年创立，并于当年推出具有划时代意义的“单气缸双活塞-拨叉式变扭矩” 气动执行器，荣获多项专利，具备“小体积-大扭矩”的突出特点，使控制更为可靠方便。依托优异的品质和先进的技术，OMAL(欧玛尔)迅速成长为欧洲拨叉式气动执行器供应商，为客户提供更为专业的自控服务。1990年，OMAL(欧玛尔)相继推出自控球阀、自控蝶阀、自控 角座阀等多品种全型号自控阀门，1998年，OMAL(欧玛尔)VIP梭阀荣获欧洲工业设计金奖。凭借着对技术与品质的执着追求，OMAL执行器和自控阀门已处于欧洲领先地位，也由最初的专业执行器制造商，成长为欧洲著名的自控阀门公司。对品质的严格要求和对技术的不断创新，是OMAL产品领先世界的重要原因。OMAL自控阀门产品覆盖所有的工业领域，能满足各种严酷恶劣的条件及高标准用户的要求，其产品有：球阀、蝶阀、角座阀、梭阀以及执行器等。

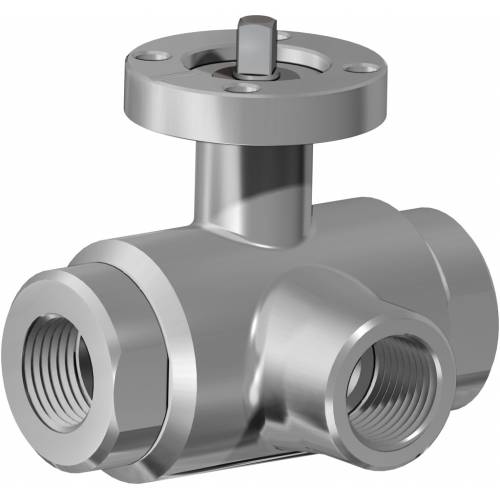

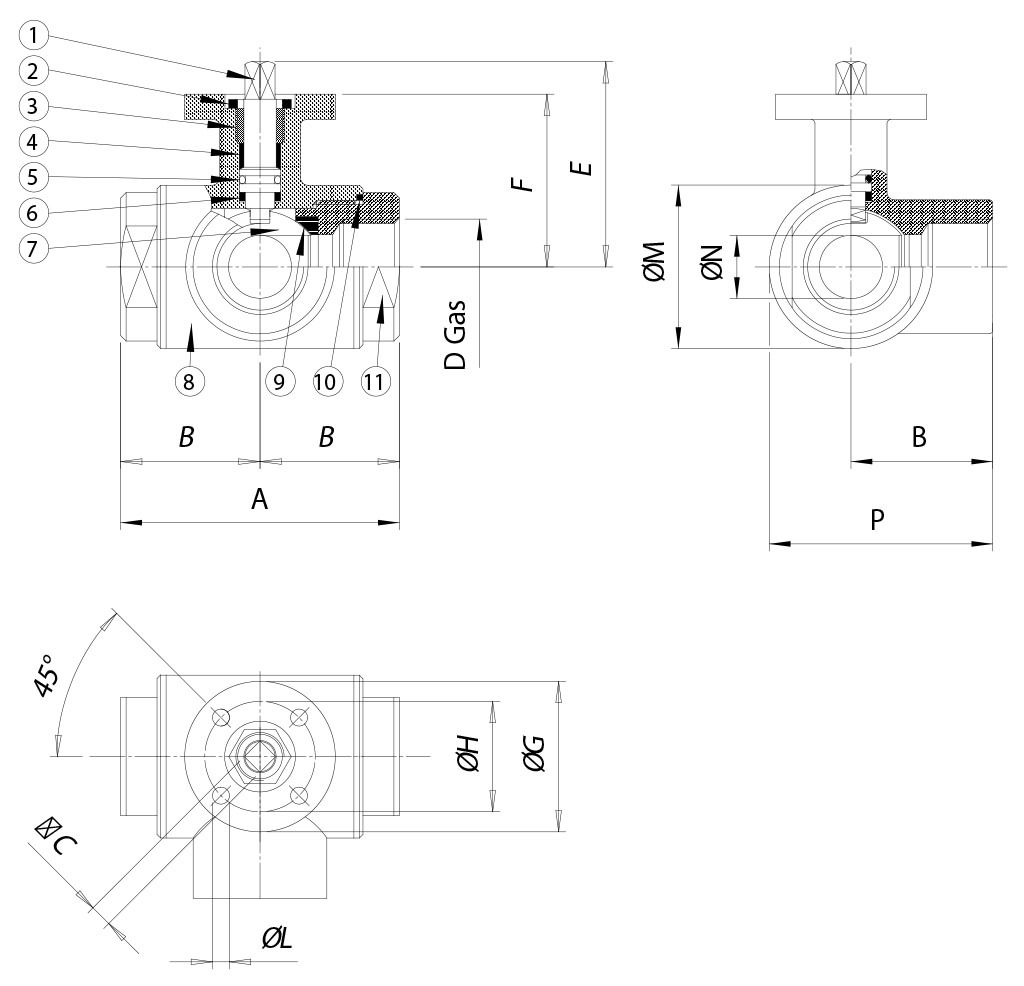

DIMENSIONS | |||||||||||||
SIZE | A | B | □C | D | E | F | øG | øH | øL | øM | øN | P | |
| DN [mm] | [inch] | ||||||||||||
| DN 10 | 3/8" | 72 | 36 | 6 | 3/8” | 54 | 46 | 46 | 36 | 6 | 35 | 10 | 53,5 |
| DN 15 | 1/2" | 82 | 41 | 6 | 1/2” | 57 | 49 | 46 | 36 | 6 | 42 | 15 | 62 |
| DN 20 | 3/4" | 92 | 46 | 9 | 3/4” | 69,5 | 56,5 | 65 | 36 | 7 | 52 | 20 | 72 |
| DN 25 | 1" | 102 | 51 | 9 | 1” | 74 | 61 | 65 | 50 | 7 | 60 | 25 | 81 |
| DN 32 | 1" 1/4 | 118 | 59 | 14 | 1" 1/4 | 94,5 | 81,5 | 65 | 50 | 7 | 72,5 | 32 | 95,3 |
| DN 40 | 1" 1/2 | 134 | 67 | 14 | 1" 1/2 | 102 | 89 | 65 | 50 | 7 | 88 | 40 | 111 |
| DN 50 | 2" | 144 | 72 | 17 | 2” | 106,5 | 91,5 | 65 | 70 | 9 | 101,5 | 50 | 122,8 |
| DN 65 | 2" 1/2 | 160 | 80 | 17 | 2" 1/2 | 116,5 | 101,5 | 90 | 70 | 9 | 121 | 65 | 140,5 |
| DN 80 | 3" | 200 | 100 | 17 | 3” | 131 | 116 | 125 | 102 | 11 | 150 | 80 | 175 |
| DN 100 | 4" | 240 | 120 | 17 | 4” | 146 | 131 | 125 | 102 | 11 | 182 | 100 | 211 |

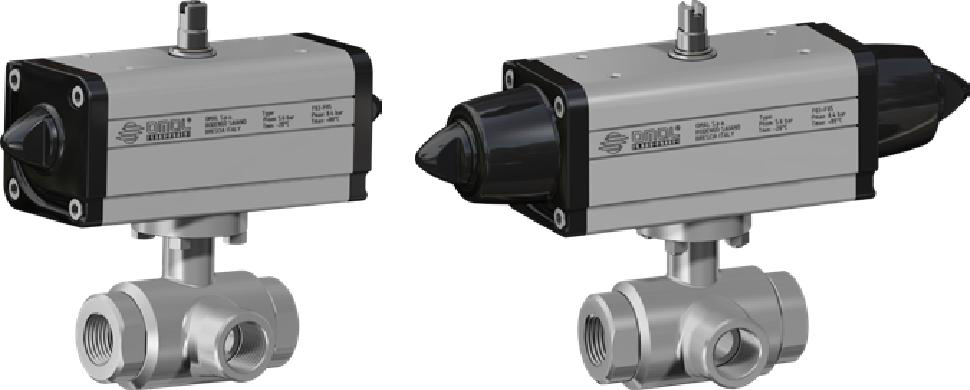

MISURA SIZE | ARTICOLO | ATTUATORE | KIT montaggio | L [mm] | H [mm] | Kg | ATEX | |
DN [mm] | [inch] | ITEM CODE | ACTUATOR | Mounting KIT | ||||
DN 10 | 3/8" | DG448H003 | DAN0015411S | KCF045293 | 159,0 | 118,2 | 1,3 | DG448H003YX |
DN 15 | 1/2" | DG448H004 | DAN0015411S | KCF045293 | 159,0 | 121,2 | 1,5 | DG448H004YX |
DN 20 | 3/4" | DG448H005 | DAN0030411S | KCF045294 | 174,2 | 135,7 | 2,7 | DG448H005YX |
DN 25 | 1" | DG448H006 | DAN0030411S | KCF045294 | 174,2 | 140,2 | 3,1 | DG448H006YX |
DN 32 | 1" 1/4 | DG448H007 | DAN0060412S | KCF055296 | 198,0 | 171,9 | 4,7 | DG448H007YX |
DN 40 | 1" 1/2 | DG448H008 | DAN0060412S | KCF055296 | 198,0 | 179,4 | 6,7 | DG448H008YX |
DN 50 | 2" | DG448H009 | DAN0106411S | KCF075298 | 237,0 | 194,8 | 9,1 | DG448H009YX |
DN 65 | 2" 1/2 | DG448H010 | DAN0120411S | KCF075298 | 244,1 | 208,5 | 11,8 | DG448H010YX |
DN 80 | 3" | DG448H011 | DAN0240411S | KCF105300 | 313,6 | 257,1 | 22,4 | DG448H011YX |
DN 100 | 4" | DG448H012 | DAN0360411S | KCF105300 | 339,3 | 279,0 | 34,2 | DG448H012YX |
MISURA SIZE | ARTICOLO | ATTUATORE | KIT montaggio | L [mm] | H [mm] | Kg | ATEX | |
DN [mm] | [inch] | ITEM CODE | ACTUATOR | Mounting KIT | ||||
DN 10 | 3/8" | SG448H003 | SRN0015401S | KCF045293 | 233,2 | 125,2 | 1,7 | SG448H003YX |
DN 15 | 1/2" | SG448H004 | SRN0015401S | KCF045293 | 233,2 | 128,2 | 1,9 | SG448H004YX |
DN 20 | 3/4" | SG448H005 | SRN0030402S | KCF055295 | 258,8 | 146,9 | 3,4 | SG448H005YX |
DN 25 | 1" | SG448H006 | SRN0030402S | KCF055295 | 258,8 | 151,4 | 3,8 | SG448H006YX |
DN 32 | 1" 1/4 | SG448H007 | SRN0053401S | KCF075297 | 304,2 | 184,8 | 6,1 | SG448H007YX |
DN 40 | 1" 1/2 | SG448H008 | SRN0060401S | KCF075297 | 338,5 | 196,0 | 8,2 | SG448H008YX |
DN 50 | 2" | SG448H009 | SRN0090401S | KCF105299 | 393,7 | 229,0 | 11,6 | SG448H009YX |
DN 65 | 2" 1/2 | SG448H010 | SRN0120401S | KCF105299 | 409,6 | 242,6 | 15,3 | SG448H010YX |
DN 80 | 3" | SG448H011 | SRN0240401S | KCF125301 | 520,5 | 281,0 | 28,2 | SG448H011YX |
DN 100 | 4" | SG448H012 | SRN0360401S | KCF125301 | 613,0 | 309,0 | 45,6 | SG448H012YX |
