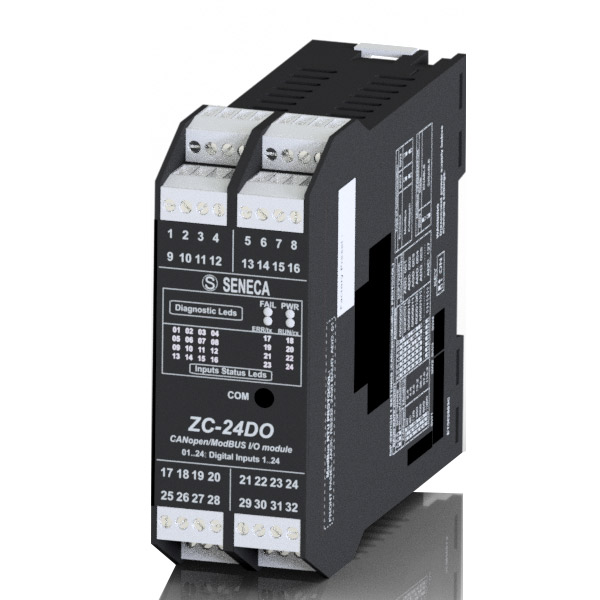

意大利Seneca I/O CANopen ZC-24DO

24 CH digital output CANopen / ModBUS RS485

ZC-24DO is used to drive N.24 MOSFETS from all of the control systems which are able to communicate by the protocols CANopen or ModBUS RTU (protocol selectable through dip-switch). The digital output max load is 0,5 Awith ON/OFF delay of 1ms. A 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your datas.


  • 描述
  • 参数
  • 设备图片

TECHNICAL DATA

ORDER CODE :ZC-24DO
DESCRIPTION:24 CH digital output CANopen / ModBUS
COMMUNICATION:CANopen 401 v.2.01
RS485 two wires, ModBUS RTU slave protocol, 64 max nodes
POWER SUPPLY:10..40 Vdc, 19..28 Vac
MAX POWER CONSUMPTION:2,5 W
INSULATION:1,5 kVac (3 way)
RESPONSE TIME:1,2 ms
OPERATING TEMPERATURE:-10..+65°C
DIMENSION:35 x 100 x 112 mm
CHANNELS:24
OUTPUT TYPE:Mosfet, max 500 mA per channel
RPDO:< 1,25 ms

SHIPPING AND EXPORT INFORMATION

PRODUCT CODEZC-24DO
GROSS WEIGHT kg0,25
ORIGINIT
TARIC85389091
ECCN5A991
