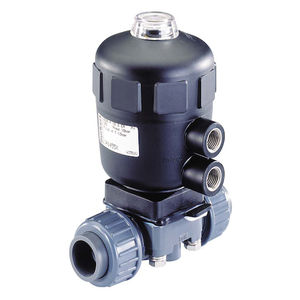

Burkert宝德伺服辅助式两位两通隔膜电磁阀类型 0142 / 货号 42045

0142型PVC塑料电磁阀油宁1'

  • 伺服辅助式隔膜电磁阀,最大通径 DN 63

  • 适用于腐蚀性介质和污染介质的塑料电磁阀

  • 介质隔离式,不含金属材料

  • 使用方便的手动开关

  • 具有反馈功能,增加开关安全性


  • 描述
  • 参数
  • 设备图片

技术属性

名称
金额
单位
Type0142
Operationservo-controlled
Actuator typePivot
Main valve operating principleDiaphragm valve
Switch functionon/off
Media separationYes
Valve functionA - normally closed - inlet port 1 (P/NC)
Fluidic port connection number2
Valve function number of switching positions2
Valve function manual actuationYes
Valve function manual actuation typeKey button
Valve function manual actuation materialPA (Polyamide)
Valve function manual actuation stopYes
Valve function manual actuation screw slotNo
FlowAbove seat
Nominal pressure min0,5bar
Nominal pressure max (liquid)6bar
Main valve orifice 1 (P) (mm)20mm
Main valve orifice 1 (inch)3/4 inch
Kv value (water)6m3/h
QNn value (gas)6.400l/min
Main valve wetted materialPVC (Polyvinyl chloride)
Port connection 1 typeBonded sleeve
Port connection 1 size DNDN 20
Port connection 1 inner diameter (mm)25mm
Port connection 2 typeBonded sleeve
Port connection 2 size DNDN 20
Port connection 2 inner diameter (mm)25mm
Pilot control material medium-contactingPVDF (Polyvinylidene fluoride)
Seat seal material categoryElastomer
Seat seal materialEPDM (Ethylene-propylene-diene rubber)
Sealing toward outside materialEPDM (Ethylene-propylene-diene rubber)
Temperature environment max40°C
Temperature medium min0°C
Temperature medium max50°C
Voltage / rated voltage24V
Voltage / rated voltage24V
Voltage tolerance negative10%
Voltage tolerance positive10%
AC voltageNo
DC voltageYes
Battery voltageYes
Rated power DC5W
Reduced power DC5W
Rated power consumption5W
Electrical connection sortPlug pattern form A according to DIN EN 175301-803
Electrical connection number of contacts2 + Grounding conductor
Cable plug in deliveryenclosed
Cable plug art. no. - type00161487 - 2508
Electrical connection positiontop
Protection type (IP max. with suitable connector)IP65
Coil typeblock bolted
Coil insulation material (encasement)Epoxy
Coil wiring overvoltage protectionwithout
Coil wiring rectifierNo
Coil wiring polarity recovery diodeNo
Thermal insulation class of the actuatorH
Nominal operation/Duty cycle100%
Switch time open min100ms
Switch time open max.800ms
Switch time close min1.000ms
Switch time close max.4.000ms
Valve setting opening timeNo
Valve setting closing timeNo
Back-pressure-resistant versionNo
Vacuum versionNo
Analysis versionNo
Oil burner valveNo
Steam versionNo
Pilot control orifice (mm)2mm
Pilot control seal materialEPDM (Ethylene-propylene-diene rubber)
Low-noise versionNo
Main valve with integrated screenNo
Valve constructionValve complete
重量0,821000kg
